Box Manure Spreaders

250P

With a 250 bushel capacity, Pequea’s 250P is designed to withstand the demands of today’s mid-size farm. The manure spreader box is constructed of fully welded 10 Gauge High Strength steel. Our large PTO model manure spreaders include 2 speed gearboxes, with a neutral and cleanout setting.

250P options include:
-Tandem Axle
-Fine Spread Pan

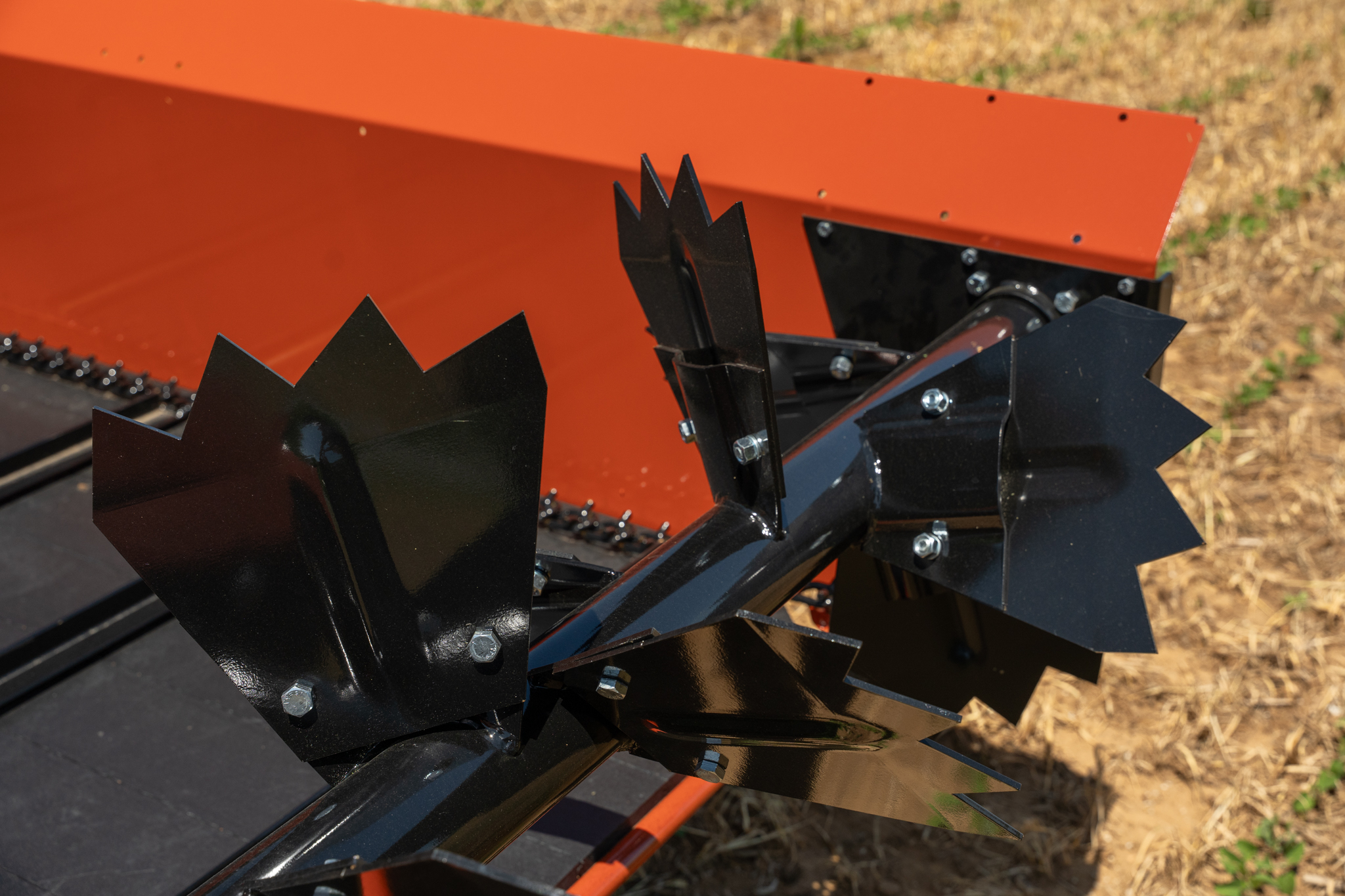

-Top Beaters
-Hydraulic End Gate

250P Box Manure Spreader Parts

Specifications

Struck Capacity          128 cu. ft.
Heaped (Old Rating) Capacity     250 Bu.
Overall Length 20′ 5″
Overall Width 92″
Loading Height 44″
Flared Width 72″
Box Width 60″
Box Length 160″
Box Height 24-1/2″
Box Construction  Fully Welded 10 Gauge High Strength Steel
Floor Construction High Density Poly Vinyl 3/4″ Tongue & Groove
Beater Paddles 10 Replaceable
Beater Diameter 26″
Drive PTO with 2 Speed Gearbox
Apron Chain     7/16″ T-Rod
Spindle 2-1/2″, Optional Tandem Axle
Wheels/Tires 10.00 x 20 Off-Road Tire on 20 x 7-8 Bolt Hub
Jack 2,000 lb
Weight with Tires 2,620 lb
Tongue Weight Empty 200 lb
Tongue Weight Loaded      450 lb
Power Required at PTO 55 HP





Features

  • The optional fine spread pan, available on all models, prevents finer or dry manure from falling out of the box in transit and in the field.
  • The tandem axle option provides better performance in harsh condition like rough terrain or wet fields.
