Box Manure Spreaders

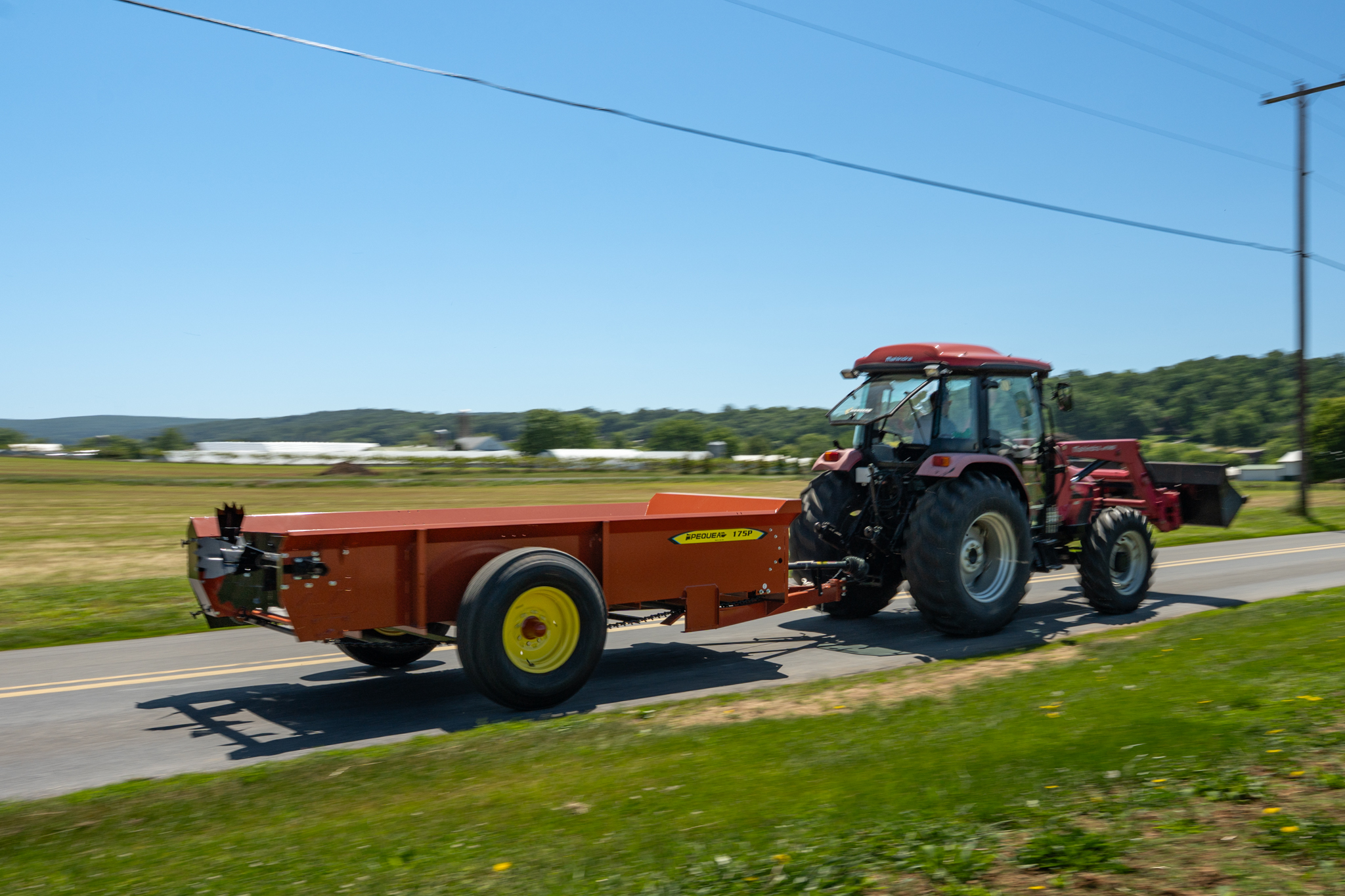

250P
With a 250 bushel capacity, Pequea’s 250P is designed to withstand the demands of today’s mid-size farm. The manure spreader box is constructed of fully welded 10 Gauge High Strength steel. Our large PTO model manure spreaders include 2 speed gearboxes, with a neutral and cleanout setting.
250P options include:
-Tandem Axle
-Fine Spread Pan
-Top Beaters
-Hydraulic End Gate
Specifications
Struck Capacity | 128 cu. ft. |
Heaped (Old Rating) Capacity | 250 Bu. |
Overall Length | 20′ 5″ |
Overall Width | 98″ |
Loading Height | 44″ |
Flared Width | 70″ |
Box Width | 60″ |
Box Length | 160″ |
Box Height | 24-1/2″ |
Box Construction | Fully Welded 10 Gauge High Strength Steel |
Floor Construction | High Density Poly Vinyl 3/4″ Tongue & Groove |
Beater Paddles | 10 Replaceable |
Beater Diameter | 26″ |
Drive | PTO with 2 Speed Gearbox |
Apron Chain | 7/16″ T-Rod |
Spindle | 2-1/2″, Optional Tandem Axle |
Wheels/Tires | 10.00 x 20 Off-Road Tire on 20 x 7-8 Bolt Hub |
Jack | 2,000 lb |
Weight | 2,620 lb |
Tongue Weight Empty | 200 lb |
Minimum HP Required | 55 HP |
Features
- The optional fine spread pan, available on all models, prevents finer or dry manure from falling out of the box in transit and in the field.
- The tandem axle option provides better performance in harsh condition like rough terrain or wet fields.
