Box Manure Spreaders

125P

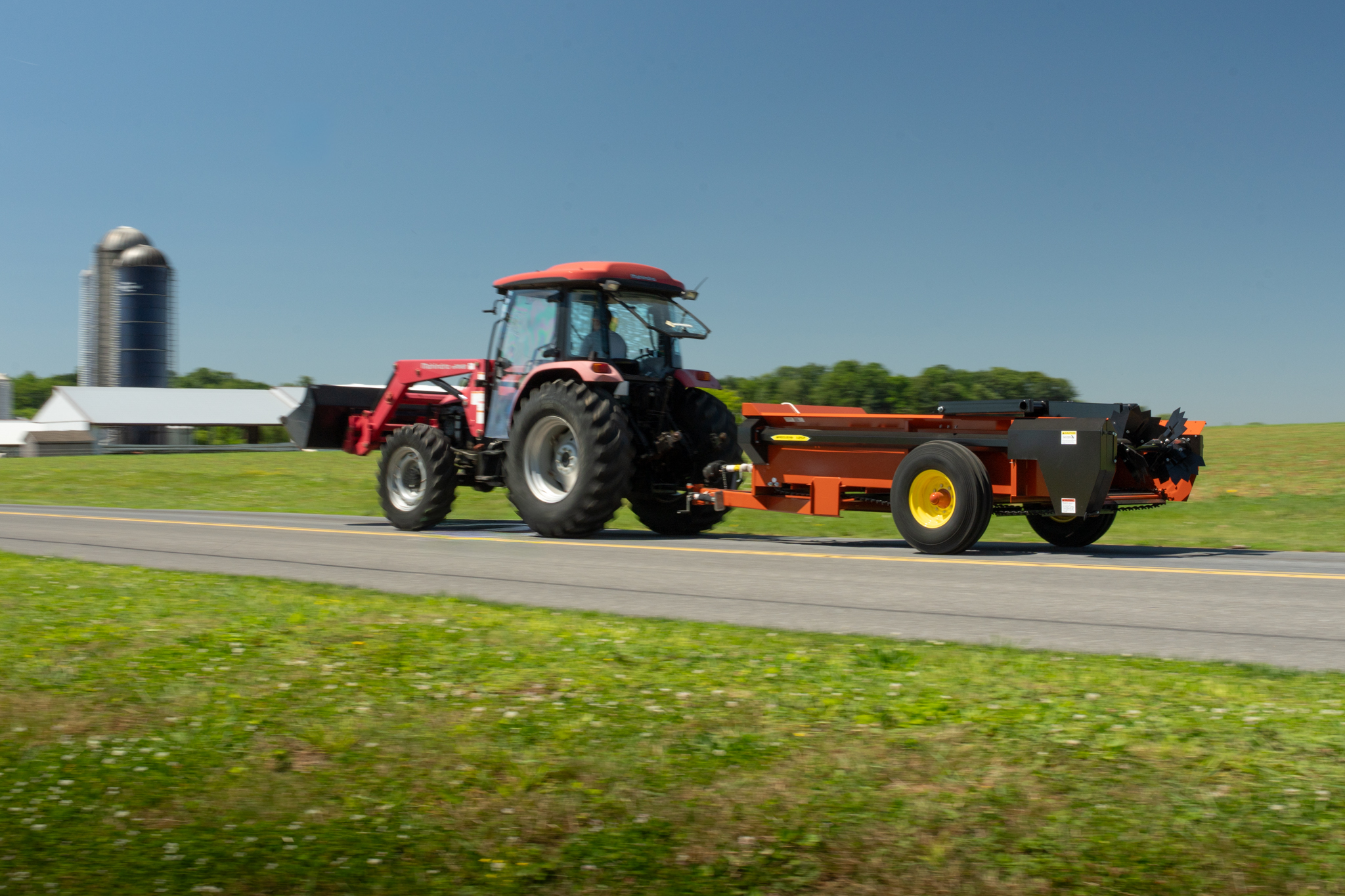

With a 125 bushel capacity, Pequea’s 125P is designed to withstand the demands of today’s small to mid-size farm. The manure spreader box is constructed of fully welded 10 Gauge High Strength steel. Our large PTO model manure spreaders include 2 speed gearboxes, with a neutral and cleanout setting. Pequea manure spreader options include fine spread pans, top beaters, and hydraulic end gates.

Specifications

Struck Capacity         90 cu. ft.
Heaped (Old Rating) Capacity    125 Bu.
Overall Length16′ 6″
Overall Width76″
Loading Height45″
Flared Width56″
Box Width47″
Box Length128″
Box Height23″
Box Construction Fully Welded 10 Gauge High Strength Steel
Floor ConstructionHigh Density Poly Vinyl 3/4″ Tongue & Groove
Beater Paddles8 Replaceable
Beater Diameter26″
DrivePTO with 2 Speed Gearbox
Apron Chain    7/16″ T-Rod
Spindle2-1/8″
Wheels/Tires10.00 x 16 Implement Tire on 16 x 8-8 Bolt Hub
Jack2,000 lb
Weight with Tires1,850 lb
Tongue Weight Empty110 lb
Tongue Weight Loaded     325 lb
Power Required at PTO35 HP

Manuals

pdf-icon

125P Parts

pdf-icon

Box Manure Spreader Brochure_UPDATED
