Orchard Spreaders

GS12

Spreading in Vineyards and Orchards can be tricky. With tight row spacing, it is important to select the right spreader for the job. With a single adjustable axle, five removable attachments, Pequea’s G12 is designed with maneuverability and versatility in mind.

GS12 Orchard Spreader Features

Specifications

Overall Height            67″ – 73″ (Adjustable Axle Hanger)
Overall Width 77″
Overall Length 16′ 7″ – 17′ 1″ (Depending on Attachment)
Hopper Width (Top)     56″
Hopper Length 12′
Floor Width 32″
Capacity   4.25 cu yd (Struck) 6.25 cu yd (Heaped)
Payload 13,000 lb
Empty Weight 3,370 lb

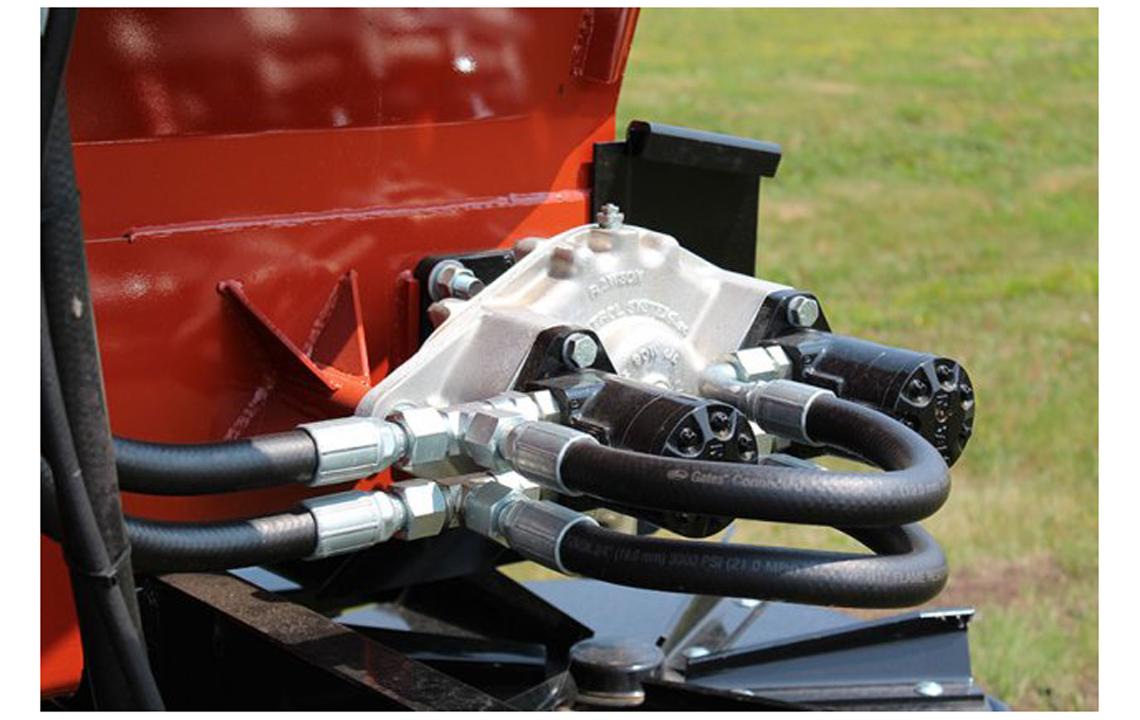

Hydraulics PTO Pump
Flow Control Adjustable Flow Control for Conveyors and Spinners
Floor & Chain Heavy Duty 88K Chain on 3/4″ Poly Tongue and Groove Floor
Axle Single with 6″ Adjustable Hanger
Tire and Wheel 16.5L x 16.1 x 14-Ply
Attachments Five Removable Options (See Photos/Videos Tab)
Power Requirements      75 Hp

Manuals

pdf-icon

Grape Spreader Ops (990041)

pdf-icon

GS12 Parts Manual

pdf-icon

Orchard Spreader Cut Sheet

Rate Chart

GS12 Rate Chart

Enter the following values for estimated spread rate

–>
