Turbo Tedders

HT4102

With an 18′ 2″ working width, the Model HT4102 stands as one of the widest 4-rotor tedders on the market. Built robustly in North America, it boasts key features like large tires for smoother field travel and fewer flats, and real 4-bolt hubs with tapered bearings that offer longer life and faster travel. The upgraded hydraulics allow for quick folding and unfolding without the need for ropes or latches. All Pequea Turbo Tedders come with seven asymmetrical tines per rotor, mounted on durable heavy pipe arms. The heavy enclosed oil-bath commercial gearboxes come with a 5-year warranty. Power is transferred at pivot points through carbo-austempered finger drives to the rotors. Hydraulic fold and tilt are also standard, eliminating the need to leave the tractor until the job is done. Find a Pequea Dealer near you to get the HT4102.

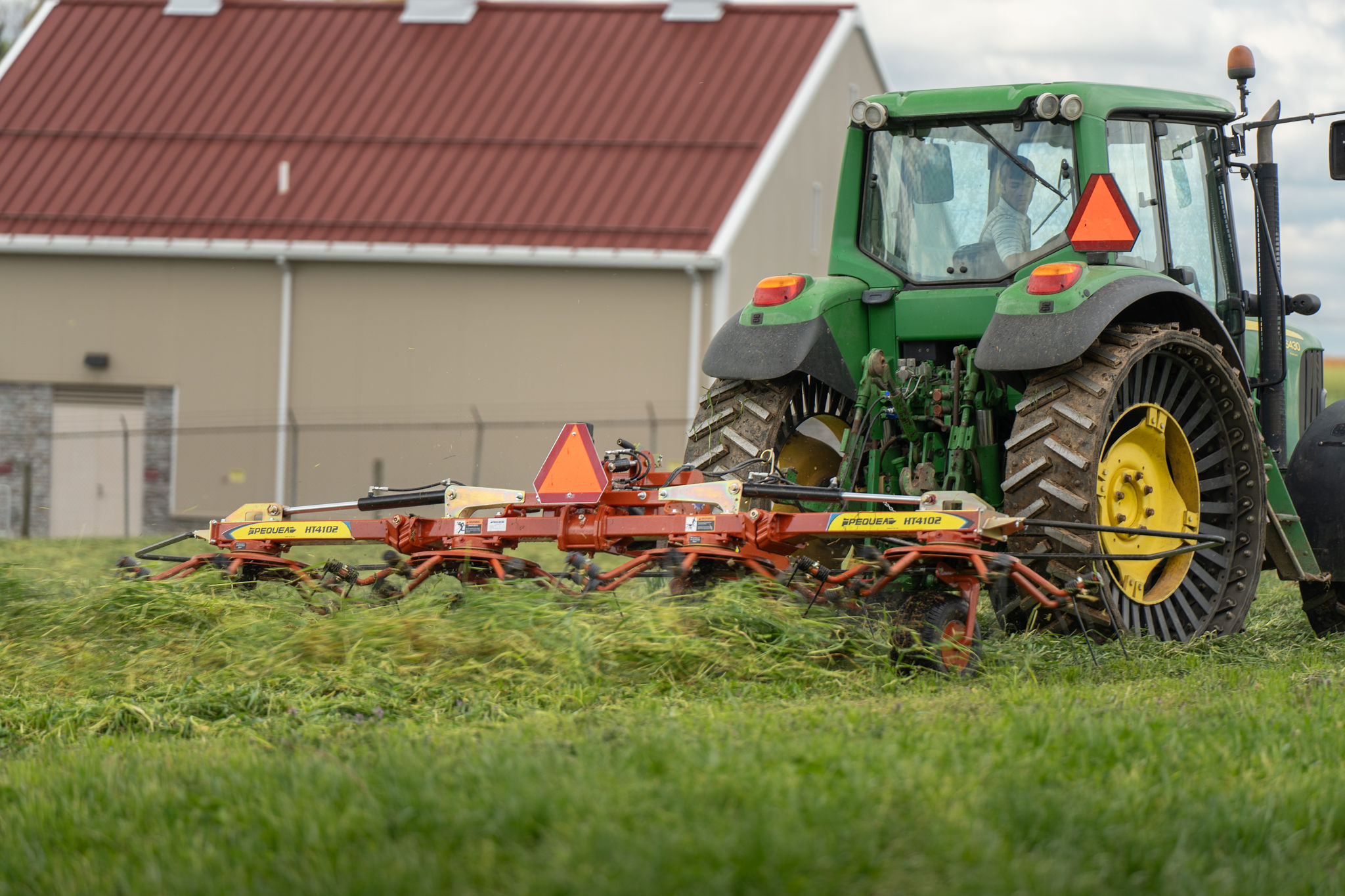

HT4102 Turbo Tedder


Specifications

Working Width 18′ 2″
Outside Tine Width 17′ 10″
Transport Width 9′ 2″
Overall Length 9′ 8″
Number of Rotors 4
Tine Arms per Rotor     7
Linkage Trailed
Rotor Tire 18.5 x 8
Weight 1,350 lb
Hydraulic Requirement 1,520 psi
PTO Power Requirement    30 hp
Rotor Gearbox Enclosed Grease
Center Gearbox Oil Bath
Tine Arm Material 1″ Schedule 80 Pipe
Rotor Spindle Wheel Hub     4-Bolt with Tapered Bearings
Transport Lights N/A

Features

  • The HT4102 was designed to make maintenance easy – with the hydraulic manifold mounted right next to the front tilt cylinder, it makes it simple to check or tighten hoses.
  • Simple, reliable hydraulic system. The 4102 folds up quickly with just one cylinder on each side.
  • The HT4102 folds over center so no clumsy ropes or latches needed. Just fold and go.
  • Like all HT Series Tedders, the HT4102 features tubular tine arms. Tubular arms provide extra durability in the field. A shot-peened double tine slides over the arm for easy installation.
