Pequea X Series Tedders

Pequea’s X Series Tedders

Our Pequea X Series tedders are suitable for various haying applications. Once the hay is cut, the tedder stirs it so the bottom, moist hay moves to the top, allowing it to dry and preventing mildew formation. This speeds up the hay-making process and substantially improves your hay quality. Maximize hay season so you get the most out of each day.

Our tedders have large tires and 4-bolt hubs with tapered bearings, which allow them to move smoothly across fields. They also have some other features and benefits, which are listed below.

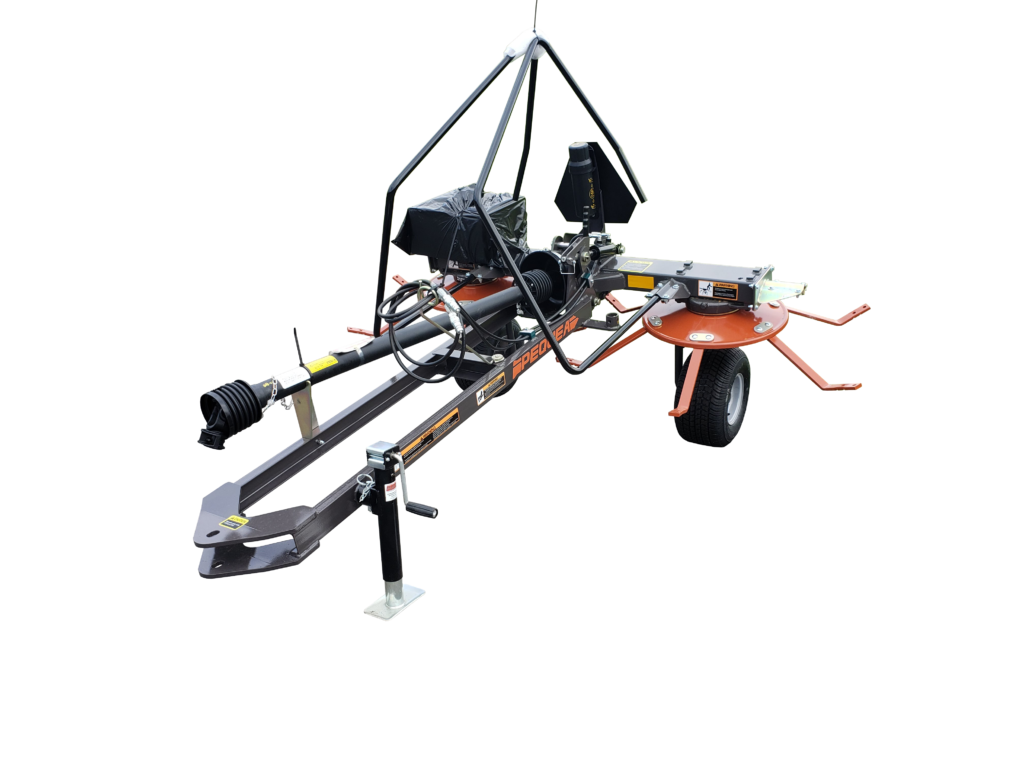

26X Tedder

The 26X tedder is the smallest, but the size doesn’t matter — it still packs a powerful punch. Consider the following:

• Weight: It weighs 700 pounds with 18.5-by-8 tires, optimal for traveling across fields effortlessly.
• Rotors: It has two rotors with six asymmetrical tine arms per rotor.
• Width: A 9-foot, 7-inch working width allows you to cover a larger area.
• Wheel hub assembly: A four-bolt hub with tapered bearings ensures faster traveling.
• Power: Power is transferred through the pivots by carbo-austempered finger drives.
• Gearbox: It has an enclosed grease rotor gearbox and an enclosed oil bath center gearbox.
• Hydraulics: Standard hydraulic tilt with a fixed rotor spindle pitch.

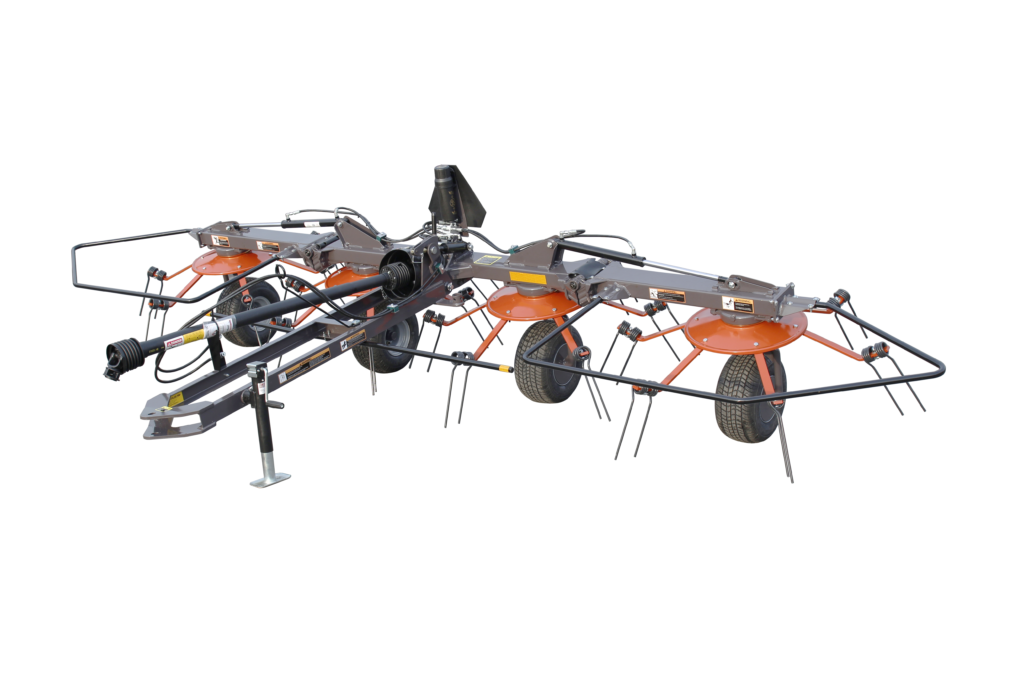

46X Tedder

With a working width of 17 feet, 4 inches, the 46X tedder can cover a vast farm area. Other features and benefits may suit your haying needs:

• Weight: This tedder weighs over 1,000 pounds since it has more rotors and tine arms to handle larger hay volumes.
• Rotors: High-strength 0.5-inch steel flat bar tine arms hold six asymmetrical tines on four rotors.
• Gearbox: Two gearboxes drive on a hexagonal shaft — a rotor gearbox with enclosed grease and a center gearbox with an oil bath.
• Hydraulics: Large 18.5-by-8 tires hold this one-tonner, and standard hydraulics support the weight and clear the tine’s pathway.
• Power: The carbo-austempered finger drives transfer power through the pivots.

66X Tedder

Our biggest and heaviest model, the 66X tedder is a workhorse of note. It has similar features as its counterpart models but includes more rotors and a wider working width and length. These features and benefits are worth considering:

• Weight: Weighing 1,900 pounds, the 66X tedder can handle extreme hay loads.
• Rotors: The 0.5-inch steel flat bar tine arm holds six tine arms per rotor on six rotors.
• Tine arms: Tubular tine arms increase durability throughout.
• Tires: The 18.5-by-8 rotor tires impressively hold almost 2 tonnes of steel.
• Hydraulics: The hydraulics require 1,300 pounds per square inch but allow quick folding and unfolding with one cylinder on each side.
• Gearbox: Oil-enclosed bath gearboxes include a five-year warranty.

Invest in Our X Series Tedders

Pequea tedders are affordable and made of high-quality materials that will stand the test of time. Our tedder’s robust, sturdy build allows it to perform even the toughest tasks.

Ready to purchase your next tedder? Call us at 717-354-8843 or locate a dealer near you to discuss the option you’re considering.
