Lime Spreaders

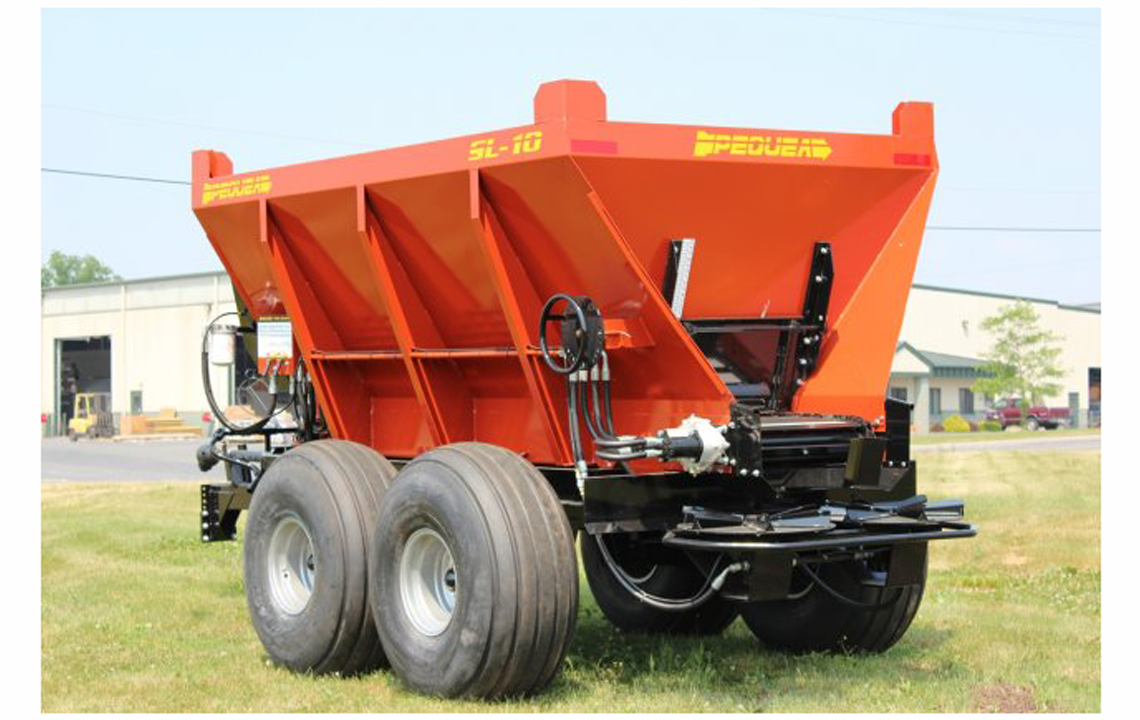

SL10

Pequea’s SL 10 is Pequea’s highest capacity lime spreader capable of carrying up to 10 cubic yards of material. It comes standard with adjustable flow control for web and spinners, electronic floor shut off, and heavy duty walking beams. For increased precision and automated traceability, Pequea offers the Digistar Automated Rate Controller System as an option. The SL10 is also available with a 304 Stainless Steel hopper and spinner.

Specifications

Overall Height           92″
Overall Width96″
Overall Length20′
Hopper Width (Top)    75″
Hopper Length11′
Side Angle60 Degrees
Floor Width32″
Capacity  240 CU. FT.
Payload10 ton (20,000 lb)
Empty Weight6,000 lb
Flow ControlAdjustable Flow Control for Conveyors and Spinners
Floor & ChainHeavy Duty 88K Chain on 3/4″ Poly Tongue and Groove Floor
AxleTandem Heavy Duty Walking Beam
Tire and Wheel21.5L-16.1SL x 10 Ply
Spinner Disc Diameter25″
Spinner Disc Thickness     1/4″

Manuals

pdf-icon

Pequea_SL_10

pdf-icon

SL10 Ops Manual

pdf-icon

SL-10 Parts
